Material : Carbon steel
Safety Factor: 5 : 1
Size: From 0.5T to 20T
Processing: Drop Forged / Quenched and Tempered
Finish :Powder Coated,Painted
Packing: Cartons then pack on pallets
A swivel hoist hook is a type of lifting hook designed with a built-in swiveling mechanism, allowing the hook to rotate freely. This rotational capability provides flexibility during lifting operations, reducing the risk of twisting or misalignment of the load. Swivel hoist hooks are commonly used in various industries for lifting and rigging applications.

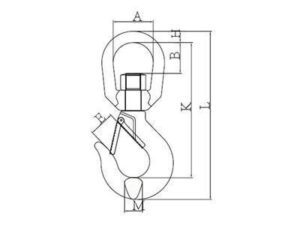

| Size t | Weight (KG) | Carbon steel | A±1(mm) | E±2(mm) | B±2(mm) | H±0.6(mm) | K±3(mm) | L±3(mm) | M±1(mm) | |
| WLL(t) | B.L.(t) | |||||||||
| 0.5 | 0.3 | 0.5 | 2.5 | 31.5 | 17 | 22.5 | 9 | 110 | 137 | 15 |
| 0.75 | 0.34 | 0.75 | 3.75 | 32 | 17 | 22.5 | 9 | 108.3 | 137 | 16 |
| 1 | 0.57 | 1 | 5 | 37.5 | 22.5 | 29.5 | 12 | 133.5 | 163.5 | 16 |
| 1.5 | 1.02 | 1.5 | 7.5 | 42.5 | 26 | 33 | 15.8 | 150.5 | 192 | 17.5 |
| 2 | 1.24 | 2 | 10 | 42.5 | 26 | 33 | 15.8 | 163 | 209 | 23 |
| 3 | 2.25 | 3 | 15 | 48 | 32.5 | 39 | 18 | 191 | 246 | 31 |
| 5 | 4.66 | 5 | 25 | 64 | 43 | 53 | 25 | 243.5 | 313 | 34 |
| 7.5 | 7.4 | 7.5 | 37.5 | 70 | 49.5 | 53 | 28.5 | 277 | 364 | 41.5 |
| 10 | 10.6 | 10 | 50 | 79 | 54.5 | 62 | 32 | 332 | 431 | 55.7 |
| 15 | 21.4 | 15 | 75 | 105 | 81 | 108 | 40 | 427 | 543 | 70 |
| 20 | 32 | 20 | 100 | 105 | 100 | 96 | 40 | 465.3 | 596 | 76.2 |

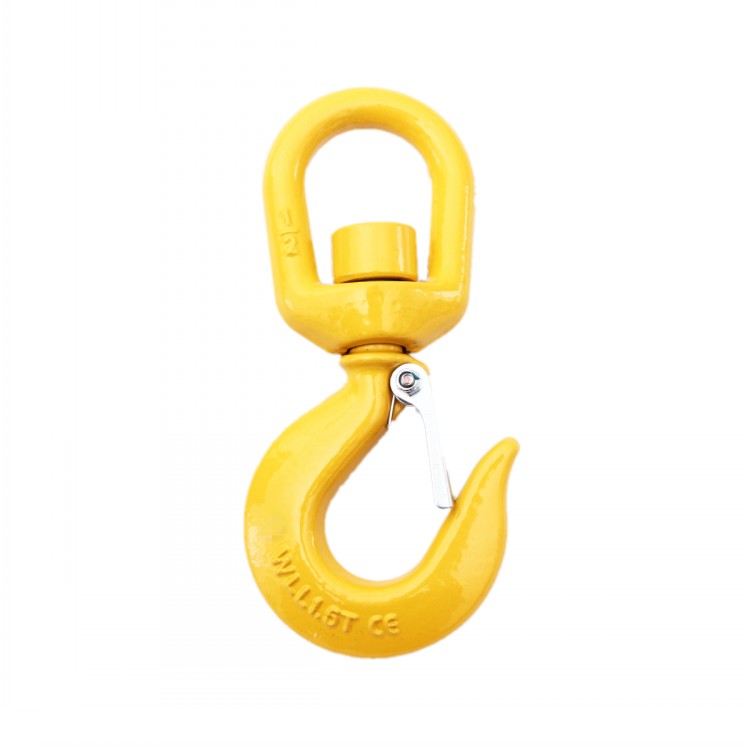

322C Swivel Eye Hook Carbon Swivel Hook with Latch provides high working load strength with a minimum of weight.
Includes a spring-loaded latch kit and swiveling supper link to keep wire rope straight without coiling or twisting.
322C Swivel Eye Hook is light weight to bring easy fast stable lifting with strong load bearing.
1. Material Handling: Used in various industries for lifting and moving heavy materials and loads.
2. Rigging: Commonly employed in rigging applications where precise load positioning is required.
3. Marine and Offshore: Applied in marine and offshore industries for lifting and rigging tasks on ships, oil rigs, and other maritime structures.
4. Construction: Used on construction sites for lifting and positioning construction materials.
5. General Lifting: Suitable for a wide range of lifting applications where flexibility and rotation enhance the efficiency and safety of lifting operations.
