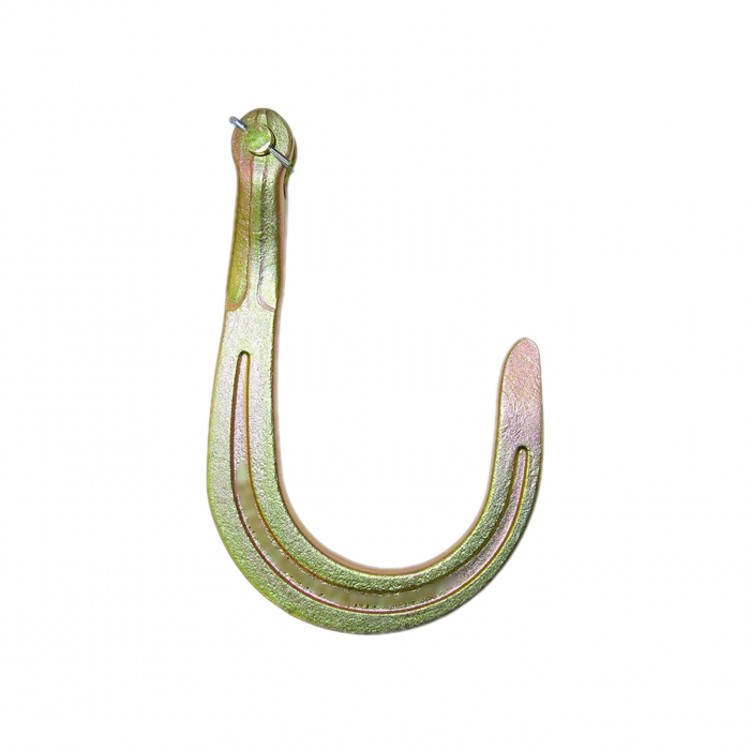

8 Inch Clevis Short J Tow Hook Grade 70 Forged Steel WLL 5400LBS

  • Size: 8”
  • WLL: 5400LBS
  • Breaking Strength (lbs): 18800 LBS
  • Material: Alloy Steel
  • Processing: Forged
  • Finish: Yellow chromate finish
  • Packing: Cartons + Pallets
Share to:

Product Description

Tow Chain Hook Clevis Short J Hook

Tow Chain Hook is a hook designed to attach to a tow chain. It has a sturdy construction to handle the weight and stress of towing vehicles or heavy loads. It typically has a clevis or eye connection point to connect with tow chains. Short J Hook refers to the shape of the hook. A “J” hook has a curved shape resembling the letter “J”. The “short” designation likely indicates that the hook has a shorter length compared to other variations.

Specifications:

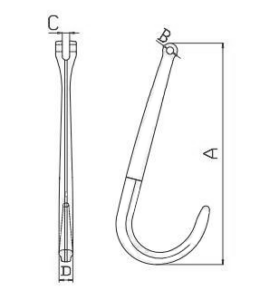

Size Dimensions(mm) WLL MBS Weight
Inch MM A B C D (LBS) (LBS) KG
8 202 210.0 12.4 12.7 25.5 5400 19000 1.24
  • Clevis J Hook can attaches to 5/16″ or 3/8″ chains with no additional hardware.
  • Do not exceed the working load limit.
  • Not to be used for overhead lifting.
  • Make Sure the Hook Size and Chain Diameter are Compatible before Attaching to Load.
  • Use with chain for towing, pulling and dragging
  • Designed for grade 70 chain or lower grade chain

FAQ

What are RTJ cluster hooks?
The RTJ Cluster hook is a specific hook for car tie-down securement. These hooks are for frame rails and unibodies. The R hook is for Ford, T hook for GM and Chysler, and the J hook is for foreign cars.



Key Features Of Tow Chain Hook Mini J Hook

  • Mini J-Hook is the most common of the cluster.
  • Designed to hook into the undercarriage’s smaller holes for extra security.
  • J-hooks work well with Toyota/Honda/etc models.
  • Drop and twist to lock the J-Hook in place.
  • Always match the SWL of your hook to the chain that you use
