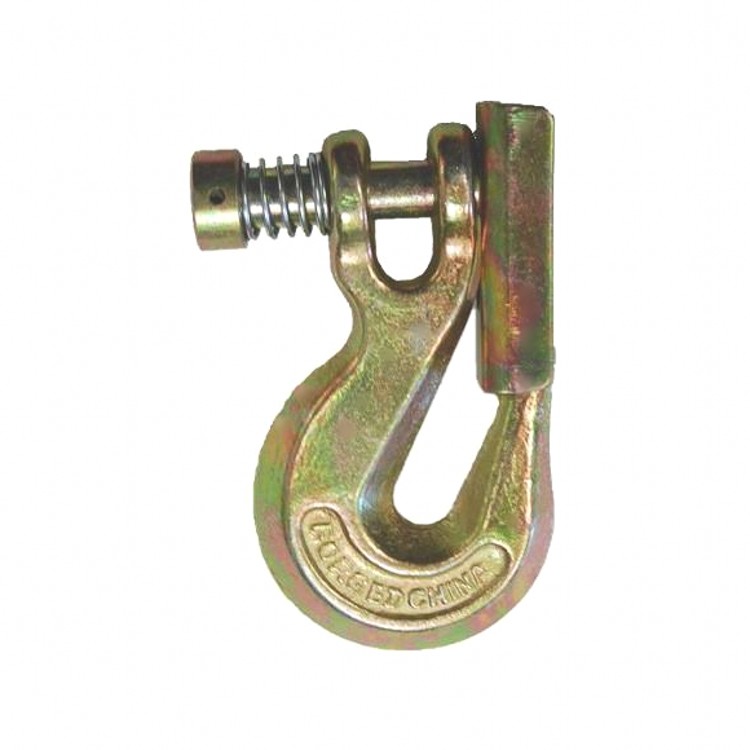

Clevis Grab Hook with Safety Latch A330N Grade 70

Size: From 5/16” to 5/8”
Ultimate Load is 4 times Working Load Limit.
Material: Alloy Steel
Processing: Forged
Finish: Self-colored
Packing: Cartons + Pallets

Share to：

Product Description

Clevis Grab Hook With Latch A330N

G70 clevis grab hook with latch or safety locks are used to join individual pieces of chain by hooking them to a link in the chain or to shorten the length of the chain. The safety latch ensures that the hook does not slip out.

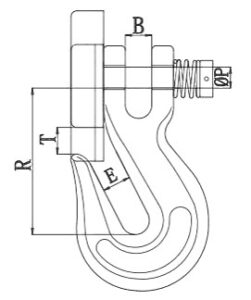

Size		Dimensions(mm)					WLL(T)		Weight
Inch	MM	B	E	P	R	T	Carbon	Alloy	KG
1/4”	6	9.1	10	8.0	50.0	10.0	1.17	1.63	0.28
5/16”	8	10.2	11.2	11.5	56.0	12.0	1.77	2.45	0.43
3/8”	10	12.0	12.7	12.0	66.7	10.5	2.45	3.4	0.60
1/2”	13	16.8	16.8	16.0	83.5	17.8	4.17	5.78	1.18
5/8”	16	23.1	19.8	19.0	105.0	20.4	5.78	8.62	2.12

The latch ensures that the hook will not slip off.
Do not exceed the working load limit.
Not to be used for overhead lifting.
Make Sure the Hook Size and Chain Diameter are Compatible before Attaching to Load.
Use with chain for towing, pulling and dragging
Designed for grade 70 chain or lower grade chain

What’s the use of Grade 70 Clevis Grab hook with latch?

Clevis grab hook with Safety Latch has a special clasp that prevents the chain from being released or re-hooked when removed. When the spring-actuated end of the fork head is pressed, the lock opens and slides up and down. Galvanized and finished with a gold chrome finish, making it easy to identify it as a grade 70 product. Ideal for mooring applications; not approved for overhead lifts.
