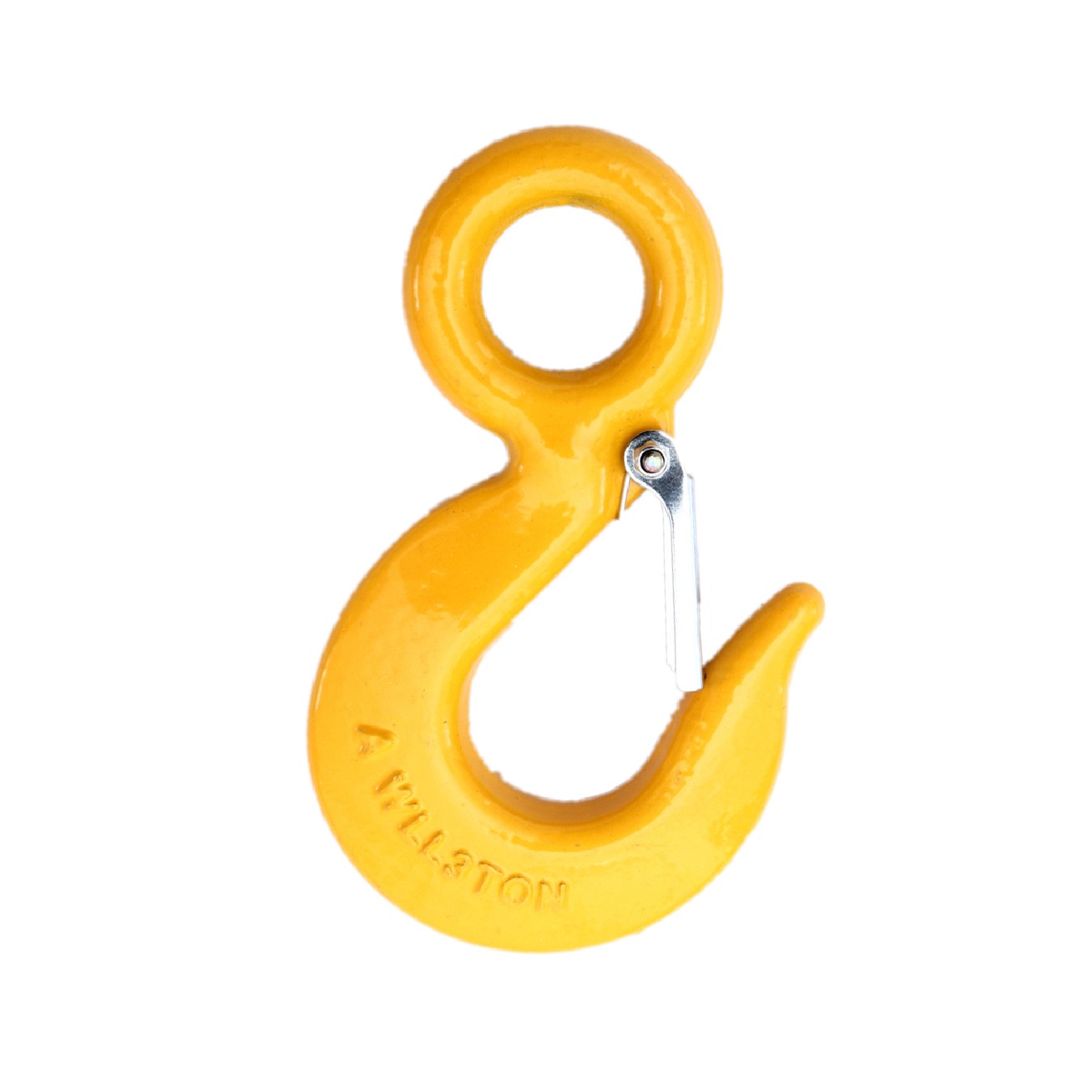

Eye Hoist Hook With Latch 320C

Material: Carbon Steel
Safety Factor: 5:1
Processing: Forged / Quenched and Tempered
Finish: Powder Coated / Electric Galvanized
Size: From 3/4T to 15T
Packing: Cartons or Gunny Bags and then on Pallets.

Share to：

Add to Cart

Product Description

Eye Hoist Hook With Latch 320C Grade 43

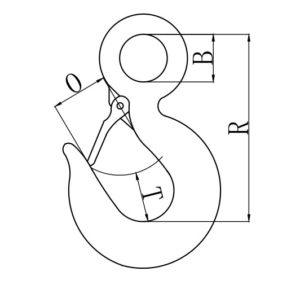

WLL(t)		Dimensions（in）				Weight(lbs)
320C	320A	B	R	O	T	Weight(lbs)
1/2	3/4	0.63	2.8	0.81	0.65	0.37
3/4	1	0.75	3.22	0.88	0.81	0.57
1	1 1/2	0.91	3.66	0.97	0.81	0.77
1 1/2	2	1.12	4.09	1	0.84	1.28
2	3	1.25	4.69	1.12	1.19	1.73
3	4 1/2	1.56	5.78	1.34	1.38	3.66
5	7	2	7.38	1.69	1.78	7.19
7 1/2	11	2.44	9.06	2.06	2.12	13.17
10	15	2.83	10.09	2.22	2.72	22.15

Forged Eye Hoist Hooks with latch are designed for attaching to the end of wire rope slings, complete with a safety latch, to lift objects quickly by crane and land them securely without the use of shackles.

Eye Hooks with Latch 320 are used in lifting field and usually used for tensing chains.

The Latch Is Only Designed to Retain Slings and Rigging Attachments.
The Latch Must Not Support the Load.
Do Not Exceed the Working Load Limit
