Material : Alloy steel
Safety Factor: 5 : 1
Size: From 0.5T to 30T
Processing: Drop Forged / Quenched and Tempered
Finish :Powder Coated,Painted
Packing: Cartons then pack on pallets

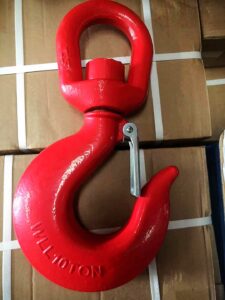

Swivel lifting hook, also known as a swivel hoist hook, is a type of lifting hook designed with a built-in swiveling mechanism that allows the hook to rotate freely. This rotation provides flexibility during lifting operations, preventing the load from becoming twisted or misaligned. Swivel lifting hooks are commonly used in various industries for lifting and rigging applications.

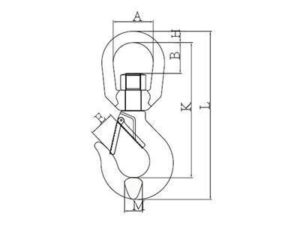

| Size t | Weight (KG) | Alloy Steel | A±1(mm) | E±2(mm) | B±2(mm) | H±0.6(mm) | K±3(mm) | L±3(mm) | M±1(mm) | |
| WLL(t) | B.L.(t) | |||||||||
| 0.75 | 0.3 | 0.75 | 3.375 | 31.5 | 17 | 22.5 | 9 | 110 | 137 | 15 |
| 1 | 0.34 | 1 | 4.5 | 32 | 17 | 22.5 | 9 | 108.3 | 137 | 16 |
| 1.5 | 0.57 | 1.5 | 6.75 | 37.5 | 22.5 | 29.5 | 12 | 133.5 | 163.5 | 16 |
| 2 | 1.02 | 2 | 9 | 42.5 | 26 | 33 | 15.8 | 150.5 | 192 | 17.5 |
| 3 | 1.24 | 3 | 13.5 | 42.5 | 26 | 33 | 15.8 | 163 | 209 | 23 |
| 5 | 2.25 | 5 | 22.5 | 48 | 32.5 | 39 | 18 | 191 | 246 | 31 |
| 7 | 4.66 | 7 | 31.5 | 64 | 43 | 53 | 25 | 243.5 | 313 | 34 |
| 11 | 7.4 | 11 | 49.5 | 70 | 49.5 | 53 | 28.5 | 277 | 364 | 41.5 |
| 15 | 10.6 | 15 | 67.5 | 79 | 54.5 | 62 | 32 | 332 | 431 | 55.7 |
| 22 | 21.4 | 22 | 99 | 105 | 81 | 108 | 40 | 427 | 543 | 70 |
| 30 | 32 | 30 | 135 | 105 | 100 | 96 | 40 | 465.3 | 596 | 76.2 |
322A Swivel Eye Hook Grade 70 Alloy Swivel Hook with Latch provides high working load strength with a minimum of weight.
Includes a spring-loaded latch kit and swiveling upper link to keep wire rope straight without coiling or twisting.
322A Swivel Eye Hook with latch prevents wire rope and chain from twisting while lifting and aligning loads.
1. Swivel Mechanism: The hook is equipped with a swiveling or rotating mechanism, allowing it to turn freely in multiple directions.
2. Material: Typically constructed from high-strength alloy steel or other durable materials to handle heavy loads.
3. Load Capacity: Marked with a safe working load limit (SWL), indicating the maximum load it can safely lift.
4. Latch or Locking Mechanism: Some swivel lifting hooks come with a latch or locking mechanism to secure the load and prevent accidental release.
5. Versatility: Suitable for applications where the ability to rotate is essential for proper load positioning and alignment.
