Weld On Grab Hook Grade 70 Forged Steel Chain Hooks

  • Size: From 5/16” to 5/8”
  • Ultimate Load is 4 times Working Load Limit.
  • Material: Alloy Steel
  • Processing: Forged
  • Finish: Self-colored
  • Packing: Cartons + Pallets
Share to:

Product Description

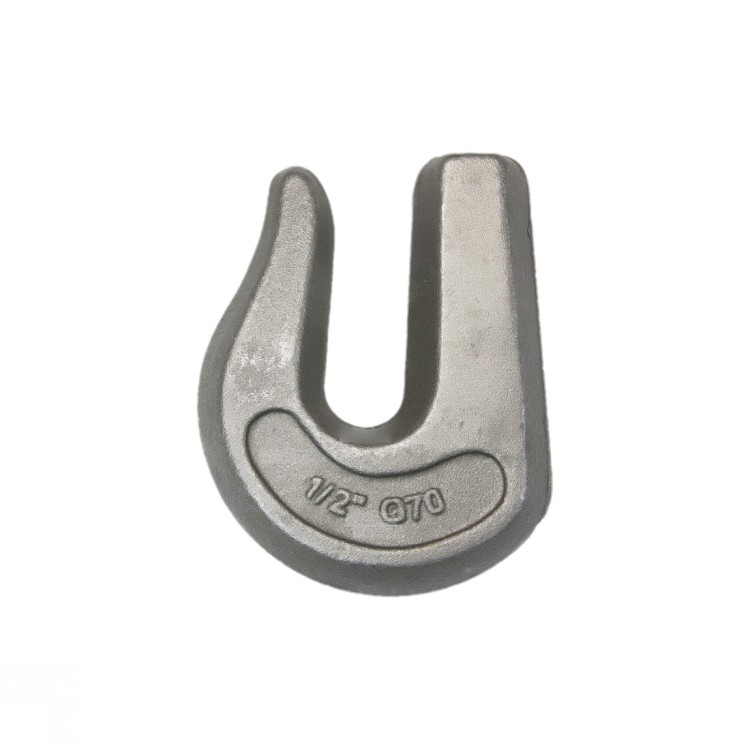

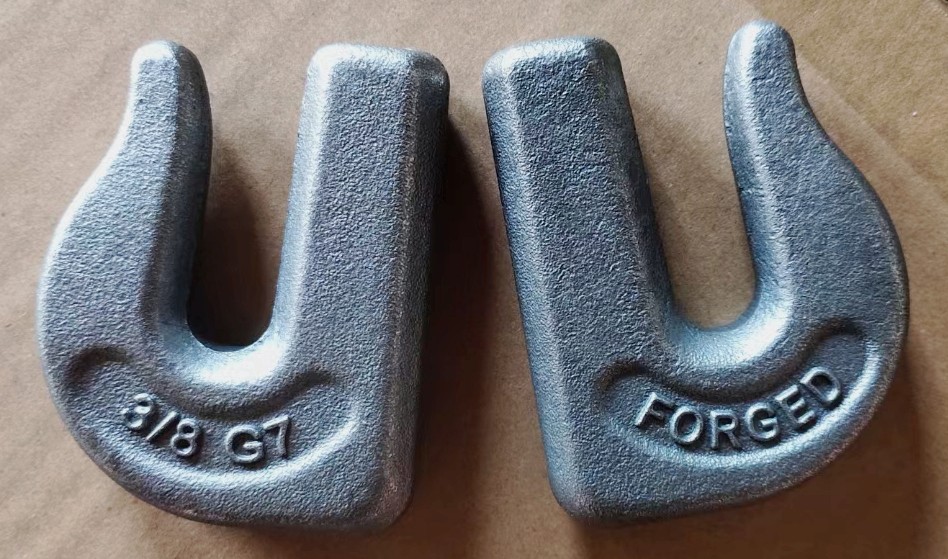

Weld On Grab Hook

Weld on grab hooks are not designed for lifting applications, but are instead welded to a bucket or tractor trailer as a quick and easy chain connecting point. It comes in different sizes and working load limits. When choosing, we should choose according to the size of the chain and the load carrying capacity.

Specifications:

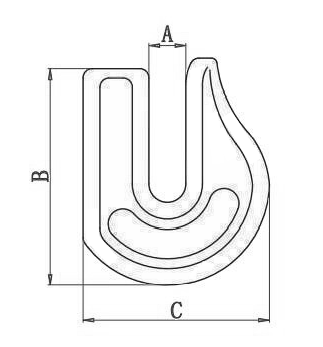

Size Dimensions(mm) WLL MBS Weight
Inch MM A B C (LBS) (LBS) KG
5/16” 8 11.5 64.0 49.6 4700 18800 0.21
3/8” 10 13.0 76.0 60.0 6600 26400 0.40
1/2” 13 17.5 99.1 78.1 11300 45200 0.79
5/8” 16 20.6 127.0 103.9 15800 63200 1.50
  • Weld On Grab Hook can weld onto equipment for a quick and easy chain attachment point.
  • Do not exceed the working load limit.
  • Not to be used for overhead lifting.
  • Make Sure the Hook Size and Chain Diameter are Compatible before Attaching to Load.
  • Use with chain for towing, pulling and dragging
  • Designed for grade 70 chain or lower grade chain

Key Features Of Weld on grab hook

  • Constructed from durable, heavy-duty steel that is corrosion resistant
  • Easily creates an anchor point for chains when welded on your vehicle
  • Weld on installation, designed for use with chains
  • Always match the SWL of your hook to the chain that you use
